Features & Details:
-
Impressive Load Capacity: This tow chain offers a remarkable loading capacity of 11,000 lbs. The chain is 13′ in length with a diameter of 5/16″. It possesses a breaking strength exceeding 800mpa, ensuring a high-security coefficient for your peace of mind.
-
Durable Steel Construction: Crafted from G80 Mn-steel chain and alloy steel hooks, our chain sling features full-automatic welding technology, making it a reliable choice designed for long-term use.
-

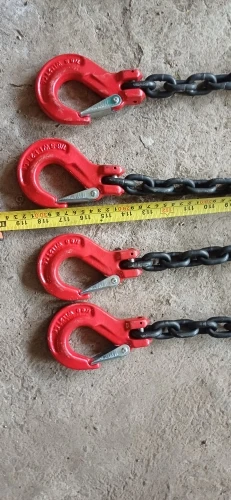

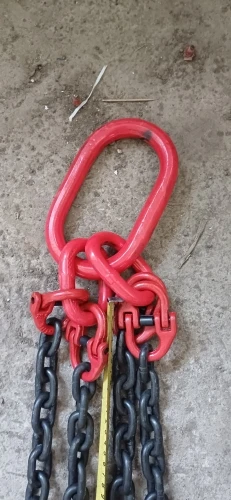

Robust Chain & Hooks: The chain in this chain sling is composed of G80 Mn-steel, known for its durability. Both the hoist link and hook are made from alloy steel with a powder coating, providing resistance to wear and high temperatures.
-
Safety Precautions: Ensure that objects hang in the center of the hook, and the edge of the hook should not be used for hanging. The chain should not be used if it’s distorted, reversed, or entangled.
-
Wide Range of Applications: Ideal for various lifting and moving activities in factories, construction sites, mining, ports, and building projects. This heavy-duty chain sling is specially designed for secure cargo towing and handling.
Chain Usage Guidelines:
- Chain slings should be immediately discontinued if any of the following conditions are observed: A. Diameter damage exceeds 10% of the original. B. Cracks, bending, distortion, or surface damage is visible on the chain. C. The chain’s permanent elongation exceeds 5% of its actual length.
Attention:
- When lifting heavy objects, users must avoid standing under or near the items.
- Regularly inspect the chains for visual damage, including hidden issues like stains or injuries that could compromise safe rigging.
Specifications:
- Origin: Mainland China
- Certification: CE
- Material: G80 Alloy Steel
- Chain Roots: 4
- Chain Diameter: 5/16″ / 8 mm

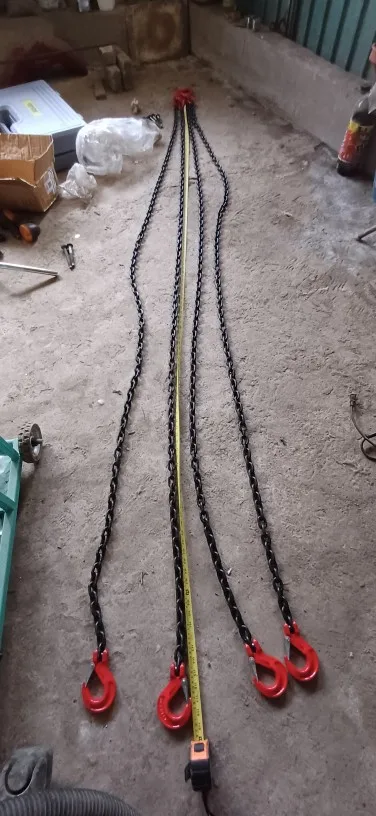

- Working Length Options: 5′ / 1.5 m, 10′ / 3 m, 13′ / 4 m
- Load Capacity: 11,000 lbs / 5 t
- Safety Factor: 4:1
![Heavy-Duty 5-Ton Lifting Chain Sling with 4 Legs, 1.5M/3M/4M x 5/16 Inch, Grade Hooks, and Adjustable G80 Alloy Steel Tow Chains](https://towropepro.com/wp-content/uploads/2023/10/chain-slings-m100-3.jpg)
![Heavy-Duty 5-Ton Lifting Chain Sling with 4 Legs, 1.5M/3M/4M x 5/16 Inch, Grade Hooks, and Adjustable G80 Alloy Steel Tow Chains](https://towropepro.com/wp-content/uploads/2023/10/chain-slings-m100-4.jpg)
![Heavy-Duty 5-Ton Lifting Chain Sling with 4 Legs, 1.5M/3M/4M x 5/16 Inch, Grade Hooks, and Adjustable G80 Alloy Steel Tow Chains](https://towropepro.com/wp-content/uploads/2023/10/chain-slings-m100-5.jpg)
![Heavy-Duty 5-Ton Lifting Chain Sling with 4 Legs, 1.5M/3M/4M x 5/16 Inch, Grade Hooks, and Adjustable G80 Alloy Steel Tow Chains](https://towropepro.com/wp-content/uploads/2023/10/chain-slings-m100-6.jpg)
![Heavy-Duty 5-Ton Lifting Chain Sling with 4 Legs, 1.5M/3M/4M x 5/16 Inch, Grade Hooks, and Adjustable G80 Alloy Steel Tow Chains](https://towropepro.com/wp-content/uploads/2023/10/chain-slings-m100-7.jpg)
![Heavy-Duty 5-Ton Lifting Chain Sling with 4 Legs, 1.5M/3M/4M x 5/16 Inch, Grade Hooks, and Adjustable G80 Alloy Steel Tow Chains](https://towropepro.com/wp-content/uploads/2023/10/chain-slings-a100-2.jpg)
- Material: G80, Alloy Steel
- Chain Root: 4
- Diameters of Chain: 5/16″/8 mm
- Working Length: 13’/4 m
- Load Capacity: 11,000 lbs/5 t
- Safety Factor: 4:1
- 1 x Chain Sling
